QHB & QHM BEV waste collection
QHB & QHM BEV
A benefit for residents and workers
Our fully-electric QHB (based on the Mercedes-Benz Econic) and QHM (based on MAN TG2) refuse collection vehicles: highest efficiency and low noise level without emissions. Thus, the e-waste vehicles are not only a benefit for local residents. By eliminating exhaust fumes and engine noise, the working conditions of the drivers and loaders at the vehicle are also significantly improved.

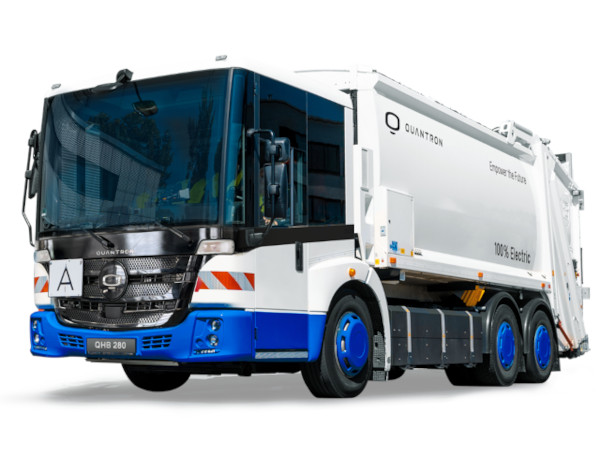

QHB BEV 27-200/280 waste collection
Vehicle data QHB BEV 27-200/280
Max. motor power cont.:
350 kW
Range:
>200 km
Battery capacity:
200 kWh or 280 kWh
Charging time:
4,6 – 6,4 h (AC, 22/44 kW)
or 1,5 – 2 h (DC, 150 kW)
Gross vehicle weight:
27000 kg
Permissible axle load:
FA 8 t / DA 11,5 t / LA 9 t
Payload:
11080 kg or 9938 kg
Curb weight chassis with body:
15920 kg or 17062 kg
Wheelbase (min. – max.):
3450 / 1350 or 3900 / 1350 mm
Base truck:
Mercedes-Benz Econic
Availability:
available now

QHB BEV 27-200
Battery
Power
Payload
Tare weight
QHB BEV 27-280
Battery
Power
Payload
Tare weight
Succesful in operation
The QHB 27-200/280 (based on the Mercedes-Benz Econic) has already successfully confirmed its quality and suitability for everyday use in test operations at more than 30 waste disposal companies.
For example, the waste collection vehicle was used in normal operation for over two weeks in the waste management company of the city of Ulm: around 900 waste bins a day on an average distance of 80 km. The actual range in 9-hour collection operation is well over 130 km without recharging the battery and the range without taking into account the body energy requirement is up to 200 km with a battery capacity of 280 kWh.
Successfully tested in over 30 waste management companies, for example in

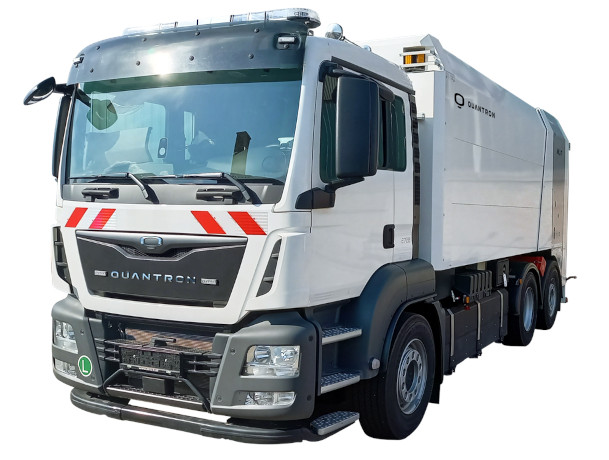

QHM BEV 27-200/280 waste collection
Vehicle data QHM BEV 27-200/280
Max. motor power cont.:
350 kW
Range:
>200 km
Battery capacity:
200 kWh or 280 kWh
Charging time:
4,6 – 6,4 h (AC, 22/44 kW)
or 1,5 – 2 h (DC, 150 kW)
Gross vehicle weight:
27000 kg
Permissible axle load:
FA 8 t / DA 11,5 t / LA 9 t
Payload:
11080 kg or 9938 kg
Curb weight chassis with body:
15920 kg or 17062 kg
Wheelbase (min. – max.):
3.450/1.350 or 3.900/1.350 mm
Base truck:
MAN TG2
Availability:
available now

QHM BEV 27-200
Battery
Power
Payload
Tare weight
QHM BEV 27-280
Battery
Power
Payload
Tare weight
Empower the Future
Every day, tonnes of waste are collected and transported from private households and companies with waste collection vehicles. However, the classic diesel drive, which is usually used in these vehicles, was never developed for stop-and-go use. Especially for refuse collection vehicles, an e-drive is the optimal choice thanks to its powerful, emission-free and quiet e-drive. The time has come for a rethink and a more sustainable future. Whether you are a private waste management company or a local authority, something has to change now.
At QUANTRON, we are enabling a future that makes waste transport efficient, sustainable and clean.
Environmentally friendly, quiet, reliable and safe – our QHB and QHM BEVs.
For more information, see our Q-Heavy overview brochure and our
Q-Kommunal with HS Fahrzeugbau brochure.
If you have any questions, please do not hesitate to contact us.
